Ọja sile
|
PARAMETER |
IPESE FOLTAGE 3.3V |
ÀWỌN ADÁJỌ́ |
|
Iwọn igbohunsafẹfẹ |
10 ~ 52MHz |
/ |
|
Ifarada igbohunsafẹfẹ |
± 1.0ppm |
Tol akọkọ. @{1}} ìyí |
|
Iduroṣinṣin igbagbogbo |
± 0.28ppm |
/ |
|
Iwọn iwọn otutu ti nṣiṣẹ |
–20 si +70 ìyí / –30 si+85 ìyí / –40 si +85 ìyí |
Ni apapo si awọn iduroṣinṣin loke. |
|
Ti ogbo fun ọdun kan |
± 1.0ppm |
@{0}} ìyí |
|
Igbohunsafẹfẹ stab.(Iwoye,20 ọdun ti ogbo) |
± 4.6pm |
/ |
|
O wu waveform ati fifuye |
Ti ge igbi Sine 10kΩ/10pF |
/ |
|
O wu foliteji ipele |
0.8Vpp |
O kere ju |
|
Symmetry (iwọn iṣẹ-ṣiṣe) |
45~55% |
@ 50% VCC |
|
Ariwo alakoso (apẹẹrẹ 10MHz) |
-120dBc/Hz / -140dBc/Hz / -148dBc/Hz |
@ 100Hz / 1kHz / 10kHz |
|
Alakoso jitter RMS |
<1ps |
12kHz Kere ju tabi dogba si Fj Kere ju tabi dọgba si 20MHz |
|
Ipese lọwọlọwọ |
3.5mA |
@10kΩ/10pF |
|
Akiyesi: Iduroṣinṣin igbagbogbo jẹ iyapa igbohunsafẹfẹ lori iwọn otutu ni itọkasi iwọn +25 |
||
Ọja Awọn ẹya ara ẹrọ

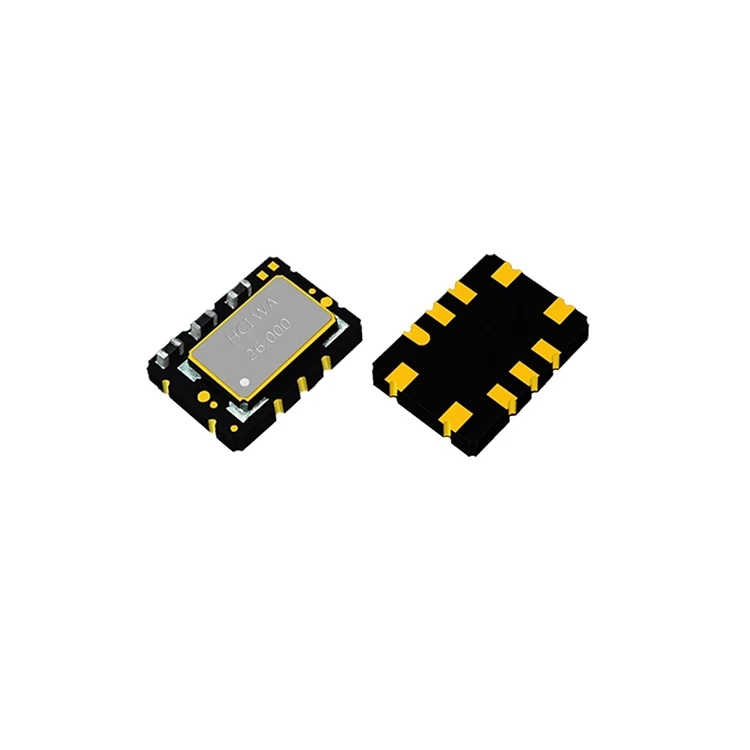

■ Awọn iwọn kekere 7.0x5.0x1.9 pẹlu awọn paadi solder 10
■ Stratum 3 (Lapapọ ± 4.6ppm pẹlu 20 ọdun ti ogbo)
■ Ibamu RoHS, LEAD-ỌFẸ, HALOGEN-Ọfẹ ati Ibamu de ọdọ
Awọn ohun elo

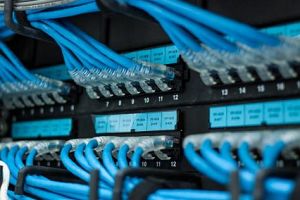

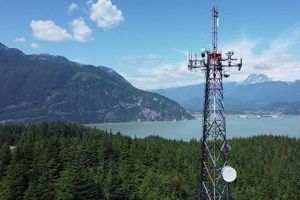

- Awọn Clipped Sine Wave TCXOs 7050 10 Pins TT75SA jara jẹ lilo pupọ ni: WiFi/WLAN/Ethernet/Mobil applications/Telecommunication/Base station ati awọn ọja miiran.
Awọn anfani ọja
Lilo agbara kekere
Ipo igbejade sine ti a rirẹ ni kikọlu itanna eletiriki kekere, ti o jẹ ki o dara fun awọn iyika afọwọṣe, lakoko ti o tun dara fun awọn ohun elo agbara kekere- nitori agbara kekere rẹ.
Ibiti iwọn otutu ti n ṣiṣẹ jakejado
Ni igbagbogbo ṣiṣẹ ni igbẹkẹle lori iwọn otutu jakejado ti -40 iwọn si iwọn 85, ṣiṣe pe o dara fun awọn ohun elo nibiti isọdi iwọn otutu ga, gẹgẹ bi awọn eto ile-iṣẹ.
ijẹrisi
Teklipede Dead Weftkos 7050 10 Pins TT75SA Series jẹ RoHS/REACH{2}}ijẹrisi, asiwaju{3}}ọfẹ, ati halogen{4}}ọfẹ.
FAQ
Ibeere: Bawo ni MO ṣe le mọ boya iyipo oscillation ti HCI Clipped Sine Wave TCXOs 7050 10 Pins Crystal ti baamu?
A: Ṣe akiyesi boya fọọmu igbi ti o wu ti oscillator gara jẹ deede, ati lo oscilloscope lati wiwọn tente oke, tente oke, igbohunsafẹfẹ ati awọn aye miiran ti fọọmu igbi ti o wu lati rii daju pe o pade awọn pato ti oscillator gara.
Ibeere: Kini o yẹ MO ṣe ti ipele itara ti HCI Clipped Sine Wave TCXOs 7050 10 Awọn pinni jẹ ajeji?
A: Ipele igbadun ti iyika oscillating lori iṣẹjade gara ti wa ni titunse nipasẹ ṣatunṣe iwọn ti Rd ni Circuit.
